NiagaraEM

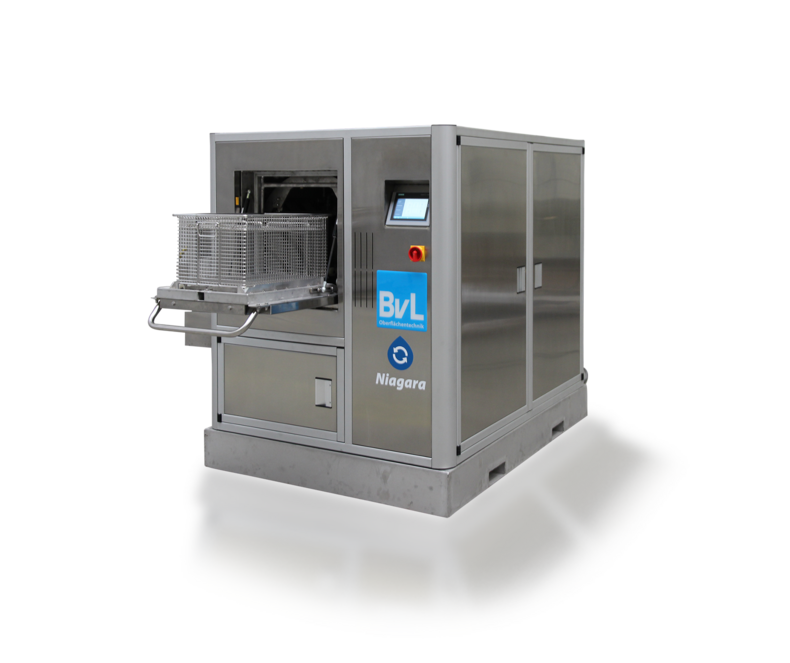

NiagaraEM is a compact flood spray cleaning system with revolving wheel technology. The system features a modern and compact design. All processing steps are carried out in a chamber. Rotating the baskets or workpiece holders around the horizontal axis ensures all-round thorough cleaning.

compact and space saving
for small parts in baskets or individual parts on workpiece holders
for parts with recesses or cavities
for light to medium soiling

Basic system
Cleaning system:	spray cleaning with flat spray nozzles
Operating principle:	revolving wheel system with stationary nozzle frame
Number of tanks:	1
Loading:	front loading through a roller guided holding fixture
Housing:	compact stainless steel housing
Tank insulatian:	yes
Control and operation:	Siemens Simatic with Siemens touch panel
Bath monitoring:	Libelle Fluid Control

Smart Cleaning

Intelligent cleaning with BvL apps and digital networking!
Transparent process information for predictive system diagnostics and maintenance: efficient and automatic.

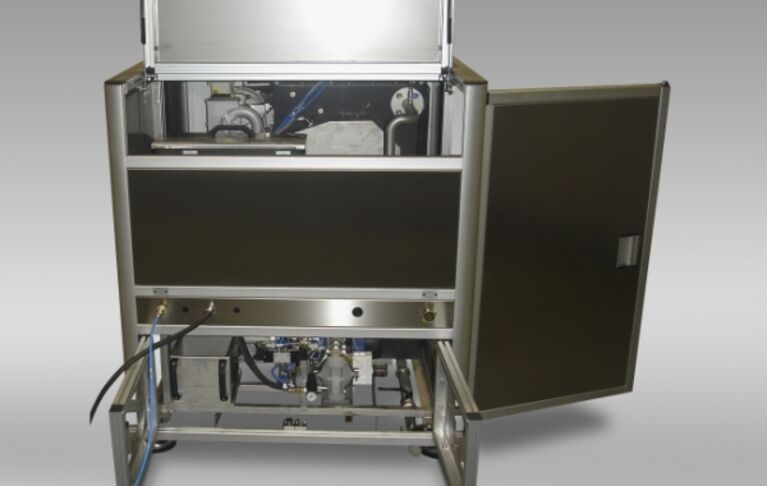

NiagaraEM mit großen Wartungstüren für gute Zugänglichkeit

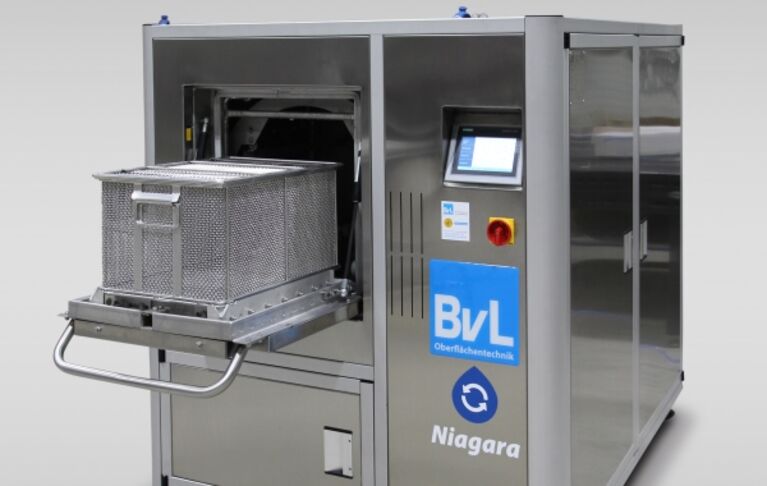

NiagaraEM mit geöffneter Klappe und rollengeführter Aufnahmevorrichtung

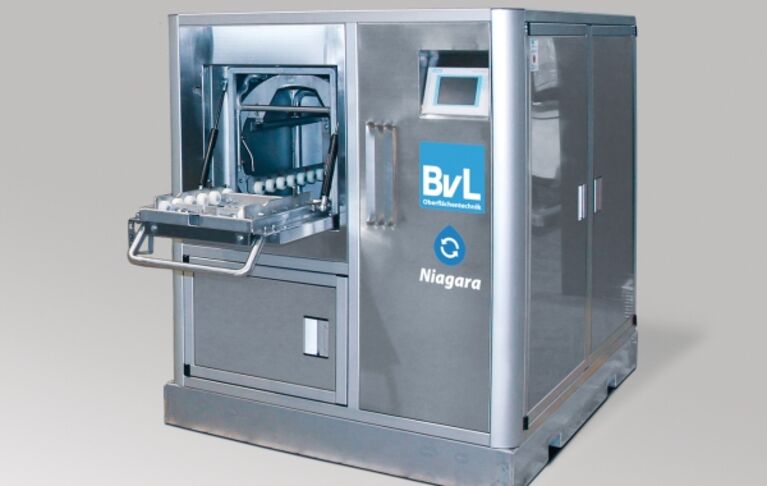

NiagaraEM mit geöffneter Klappe und Aufnahmevorrichtung

Cleaning technology

holding fixture revolves or swivels around the horizontal axis
all-round cleaning through special nozzle frame
nozzles and nozzle frames can be adapted to the component
adaptation of useful dimensions, loads and pump capacities possible

Processing steps

The processing steps are carried out in a chamber:

washing: spray cleaning, flood cleaning (optional), injection flood cleaning (optional)
rinsing with demineralised water (optional)
drying with air blast (optional) or hot air (optional)

Options and supplements

drying systems
handling systems: loading carriage, cross movement table and automation
increased pump capacity, increased spray pressure
bath maintenance options
process reliability: Libelle Cleaner Control, Libelle Oil Control, Libelle Data Control, remote diagnosis
cascade guiding
floor drip tray
other system components
